The module is an Axioline P I/O module for use in the Axioline P modular I/O system. The module is a modular I/O device that can be affixed to the Axioline P local bus, to communicate I/O data up to the Axioline P bus coupler, which forms the head of the station. As an intrinsic safety I/O module, this device allows direct connection from intrinsically safe field I/Os to the terminals of the module. The digital input module with NAMUR capabilities collects digital input signals and supports NAMUR proximity and close contact switches and makes this information available to the bus coupler through the Axioline P local bus. The module is fully hot-swappable and may be removed while under power.

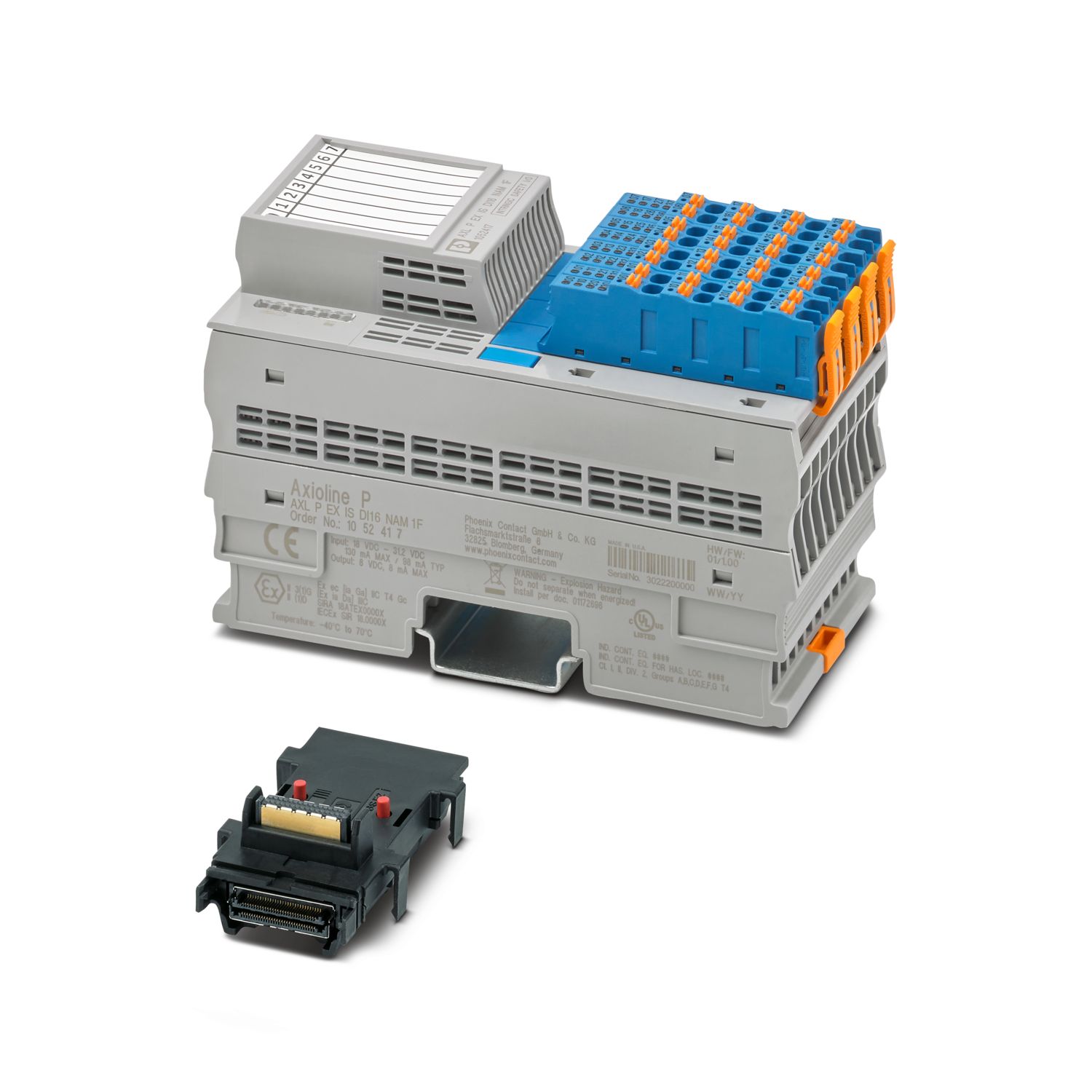

AXL P EX IS DI16 NAM 1F
-
Digital module
1052417
Axioline P, Digital input module, Digital inputs: 16 (NAMUR), 8 V DC, connection technology: 2-conductor, NAMUR functionality, intrinsically safe, transmission speed in the local bus: 100 Mbps, degree of protection: IP20, including bus base module and Axioline P connectors
Product details
| Dimensional drawing |
|
| Width | 53.6 mm |
| Height | 126.1 mm |
| Depth | 77.14 mm |
| Note on dimensions | The depth applies when a TH 35-7.5 DIN rail is used (in accordance with EN 60715). |
| Note on application | |
| Note on application | Only for industrial use |
| Utilization restriction | |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Utilization restriction | |
| CCCex note | Use in potentially explosive areas is not permitted in China. |
| Axioline P local bus | |
| Number of interfaces | 2 |
| Connection method | Bus base module |
| Transmission speed | 100 Mbps |
| Module | |
| ID code (hex) | none |
| Input address area | 2 Byte (Firmware 1.00) |
| 4 Byte (Firmware 1.03 or later) | |
| Output address area | 0 Byte |
| Digital: | |
| Input name | Digital inputs |
| Description of the input | NAMUR enabled digital input signals |
| Number of inputs | 16 (NAMUR) |
| Connection method | Push-in connection |
| Connection technology | 2-conductor |
| Nominal input voltage UIN | 8.2 V DC |
| Protective circuit | Polarity reversal protection of the inputs |
| Product type | I/O component |
| Product family | Axioline P |
| Type | block modular |
| Mounting position | any (no temperature derating) |
| Scope of supply | including bus base module and Axioline P connectors |
| Special properties | NAMUR functionality |
| intrinsically safe | |
| Insulation characteristics | |
| Overvoltage category | II (IEC 60664-1, EN 60664-1) |
| Pollution degree | 2 (IEC 60664-1, EN 60664-1) |
| Maximum power dissipation for nominal condition | 3.17 W |
| Potentials: Supply voltage (UL) | |
| Supply voltage | 24 V DC (via bus base module) |
| Supply voltage range | 19.2 V DC ... 30 V DC |
| Current draw | max. 130 mA (via bus base module) |
| typ. 94 mA (via bus base module) | |
| Protective circuit | Surge protection; electronic (35 V, 0.5 s) |
| Reverse polarity protection; Polarity protection diode | |
| Transient protection; Suppressor diode | |
| Potentials: Axioline P local bus supply (UBus) | |
| Supply voltage | 5 V DC (via bus base module) |
| Current draw | max. 135 mA |
| typ. 110 mA | |
| Electrical isolation/isolation of the voltage ranges | |
| Test voltage: 5 V supply of the local bus (UBus) / functional ground | 500 V AC, 60 Hz, 1 min |
| Test voltage: 5 V supply of the local bus (UBus) / digital inputs | 1500 V AC, 60 Hz, 1 min |
| Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 60 Hz, 1 min |
| Test voltage: 24 V supply (I/O) / digital inputs | 1500 V AC, 60 Hz, 1 min |
| Test voltage: Digital inputs / functional ground | 500 V AC, 60 Hz, 1 min |
| Connection technology | |
| Connection name | Axioline P connector |
| Note on the connection method | Please observe the information provided on conductor cross-sections in the “Axioline P: System and installation” user manual. |
| Conductor connection | |
| Connection method | Push-in connection |
| Conductor cross section rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 1.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
| Stripping length | 8 mm |
| Axioline P connector | |
| Connection method | Push-in connection |
| Note on the connection method | Please observe the information provided on conductor cross-sections in the “Axioline P: System and installation” user manual. |
| Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
| Stripping length | 8 mm |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Degree of protection | IP20 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 2000 m above sea level) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| ATEX | |
| Identification | II 3(1) G Ex ec [ia Ga] IIC T4 Gc II (1) D [Ex ia Da] IIIC |
| Certificate | DEMKO 20 ATEX 2370X |
| IECEx | |
| Identification | Ex ec [ia Ga] IIC T4 Gc [Ex ia Da] IIIC |
| Certificate | IECEx UL 20.0044X |
| UKCA Ex (UKEX) | |
| Identification | II 3(1) G Ex ec [ia Ga] IIC T4 Gc II (1) D [Ex ia Da] IIIC |
| Certificate | UL22UKEX2508X |
| UL, USA/Canada | |
| Identification | cULus |
| Certificate | E238705 |
| UL Ex, USA / Canada | |
| Identification | Class I, Division 2, Groups A, B, C, D, T4 |
| Intrinsically safe connections to: Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III; [Ex ia] Haz loc | |
| Class I, Zone 2, AEx ec [ia Ga] IIC T4 Gc | |
| [AEx ia Da] IIIC | |
| Ex ec [ia Ga] IIC T4 Gc | |
| [Ex ia Da] IIIC | |
| Certificate | E196811 |
| CCC / China-Ex | |
| Identification | Ex ec [ia Ga] IIC T4 Gc |
| [Ex ia Da] IIIC | |
| Ex data | |
| UL, USA / Canada | Ind. Cont. Eq. (E238705) also Listed Ind. Cont. Eq. for haz. loc. E196811 Install in: Class I, Div. 2, Groups A, B, C, D T4 Intrinsically safe outputs for: Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III; [Ex ia] Haz loc Class I, Zone 2, AEx ec [ia Ga] IIC T4 Gc [AEx ia Da] IIIC Ex ec [ia Ga] IIC T4 Gc [Ex ia Da] IIIC |
| Mounting type | DIN rail mounting |
| Mounting position | any (no temperature derating) |
| Safety data | |
| Max. output voltage Uo | 10.6 V |
| Max. output current Io | 11 mA |
| Max. output power Po | 30 mW |
| Safety-related maximum voltage Um | 250 V |
| A, B / IIC: Max. external inductivity Lo / Max. external capacitance Co | 100 mH / 2.3 µF |
| C/IIB, IIIC: Max. external inductivity Lo / Max. external capacitance Co | 100 mH / 16 µF |
| D/IIA, E, F, G, Class III: Max. external inductivity Lo / Max. external capacitance Co | 100 mH / 71.8 µF |
cUL Listed
Approval ID: E238705IECEx
Approval ID: IECEx UL 20.0044XcUL Listed
Approval ID: FILE E196811UL Listed
Approval ID: FIILE E196811ATEX
Approval ID: DEMKO 20 ATEX 2370XCCC
Approval ID: 2025122316122298UKCA-EX
Approval ID: UL22UKEX2508X
Your advantages
16 NAMUR digital input signals for NAMUR proximity sensors according to EN 60947-5-6
Open circuit contacts
Switch contacts with resistance circuit in accordance with IEC/EN 60947-5-6
Connection of sensors in 2-conductor technology
Intrinsically safe digital inputs with connection to Zone 1, Zone 0 or Division 1
Can be used under extreme ambient conditions
Temperature range: -40 °C ... +70 °C
Hot-swappable
