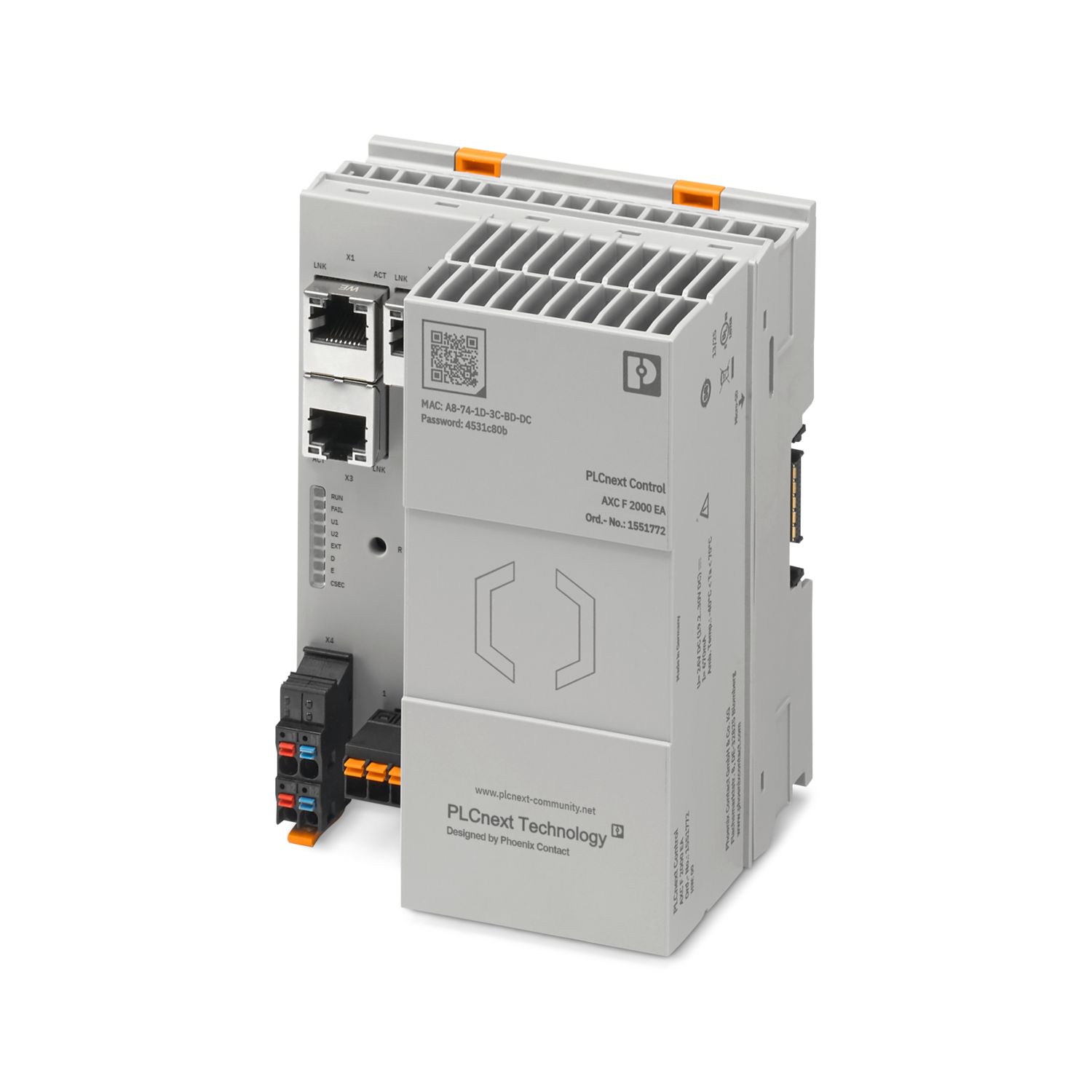

AXC F 2000 EA
-
Controller
1551772
Controller (SPS), PLCnext Control; Operating system: Linux; Programming tool: PLCnext Engineer, Eclipse®, Visual Studio®, MATLAB®/ Simulink®; Processor: Arm® Atom® x5-E3930, 2x 1 GHz.
Product details
| Product type | Controller |
| Product family | PLCnext Control |
| Type | modular |
| Insulation characteristics | |
| Protection class | II (IEC 61140, EN 61140, VDE 0140-1) |
| Overvoltage category | II (IEC 61010-2-201/EN IEC 61010-2-201) |
| Pollution degree | 2 |
| Display | |
| Diagnostics display | no |
| Trusted Platform Module | TPM 2.0 |
| Processor | Arm®Atom® x5-E3930, 2x 1 GHz |
| Flash memory | 4 GByte (internal flash memory) |
| SD card from Phoenix Contact (for external flash memory, see accessories) | |
| Retentive data storage | 48 kByte (NVRAM) |
| Axioline | |
| Amount of process data | max. 1482 Byte (per station (total input and output data)) |
| max. 1024 Byte (Axioline F local bus (input)) | |
| max. 1024 Byte (Axioline F local bus (output)) | |
| Number of supported devices | max. 63 (per station) |
| Number of local bus devices that can be connected | max. 63 (observe current consumption) |
| Function | |
| Diagnostics display | no |
| Redundancy function | yes |
| Industrial cybersecurity | yes |
| Functionality | |
| Programming languages supported | Symbolic flowchart (SFC) |
| Ladder diagram (LD) | |
| Function block diagram (FBD) | |
| Structured text (ST) | |
| C++ | |
| C# | |
| Java | |
| Python® | |
| Simulink® | |
| System requirements | |
| Engineering tool | PLCnext Engineer |
| Eclipse® | |
| Visual Studio® | |
| MATLAB®/ Simulink® | |
| Application interface | OPC UA® |
| Real-time clock | |
| Realtime clock | yes |
| Description realtime clock | typ. 10 ppm, max. 20 ppm at 25°C |
| Potentials | |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple (± 5 %)) |
| Power consumption | max. 16.2 W |
| Protective circuit | Surge protection; electronic |
| Reverse polarity protection; electronic | |
| Potentials: Axioline F local bus supply (UBus) | |
| Supply voltage | 5 V DC (via bus base module) |
| Relay | |
| Number of outputs | 1 |
| Supported protocols | HTTP |
| HTTPS | |
| SFTP | |
| Modbus/TCP (via corresponding library) | |
| Modbus/RTU (Via extension module) | |
| MQTT (via corresponding app) | |
| OPC UA® Server | |
| OPC UA® Client (via corresponding app) | |
| DHCP (via corresponding app) | |
| IEC 60870-5-101 | |
| IEC 60870-5-104 | |
| IPsec | |
| syslog | |
| Web server | yes |
| Axioline F local bus | |
| Number of interfaces | 1 |
| Connection method | Bus base module |
| Transmission speed | 100 Mbps |
| Ethernet | |
| Bus system | RJ45 |
| Number of interfaces | 3 |
| Connection method | RJ45 jack |
| Note on the connection method | Auto negotiation and autocrossing |
| Transmission speed | 100/1000/10000 Mbps (full duplex) |
| Transmission physics | Ethernet in RJ45 twisted pair |
| Transmission length | max. 100 m |
| Width | 100 mm |
| Height | 126.93 mm |
| Depth | 75 mm |
| Note on dimensions | The depth applies when a TH 35-7.5 DIN rail is used (in accordance with EN 60715). |
| Color (Housing) | gray (RAL 7042) |
| Ambient conditions | |
| Degree of protection | IP20 (Manufacturers declaration, not evaluated by UL) |
| Ambient temperature (operation) | -40 °C ... 70 °C up to 2000 m above mean sea level (observe derating) |
| -40 °C ... 70 °C up to 3000 m above mean sea level (≥ 55°C (at maximum 1 A at UBus), observe derating) | |
| 55 °C ... 70 °C (Observe the requirements in the user manual for operation in the extended temperature range in accordance with IEC 61850-3.) | |
| -40 °C ... 70 °C (Observe the requirements in the user manual for operation in the extended temperature range in accordance with IEC 61850-3.) | |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % (according to DIN EN 61131-2) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (according to DIN EN 61131-2) |
| Shock (operation) | 30g (in accordance with EN 60068-2-27/IEC 60068-2-27) |
| Vibration (operation) | 5g (in accordance with EN 60068-2-6/IEC 60068-2-6) |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 58 kPa ... 106 kPa (up to 4500 m above mean sea level) |
| UL, USA/Canada | |
| Identification | cULus |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Conformance with EMC directives | Immunity test in accordance with EN 61000-6-5/IEC 61000-6-5 Electrostatic discharge (ESD)IEC 61000-4-2 |
| Immunity test in accordance with EN 61000-6-5/IEC 61000-6-5 Electromagnetic fieldsIEC 61000-4-3 Criterion A, Field intensity: 10 V/m | |
| Immunity test in accordance with EN 61000-6-5/IEC 61000-6-5 Fast transients (burst)IEC 61000-4-4 Criterion A, 4 kV | |
| Immunity test in accordance with EN 61000-6-5/IEC 61000-6-5 Transient overvoltage (surge)IEC 61000-4-5 Criterion A, 4 kV asymmetrical, 2 kV symmetrical | |
| Immunity test in accordance with EN 61000-6-5/IEC 61000-6-5 Conducted interferenceIEC 61000-4-6 Criterion A, Test voltage 10 V | |
| Noise emission test in accordance with EN 61000-6-4/IEC 61000-6-4 pass |
| Mounting type | DIN rail mounting |
| Item number | 1551772 |
| Packing unit | 1 pc |
| Minimum order quantity | 1 pc |
| Product key | DRMBAA |
| GTIN | 4067923029323 |
| Weight per piece (including packing) | 422.7 g |
| Weight per piece (excluding packing) | 356.8 g |
