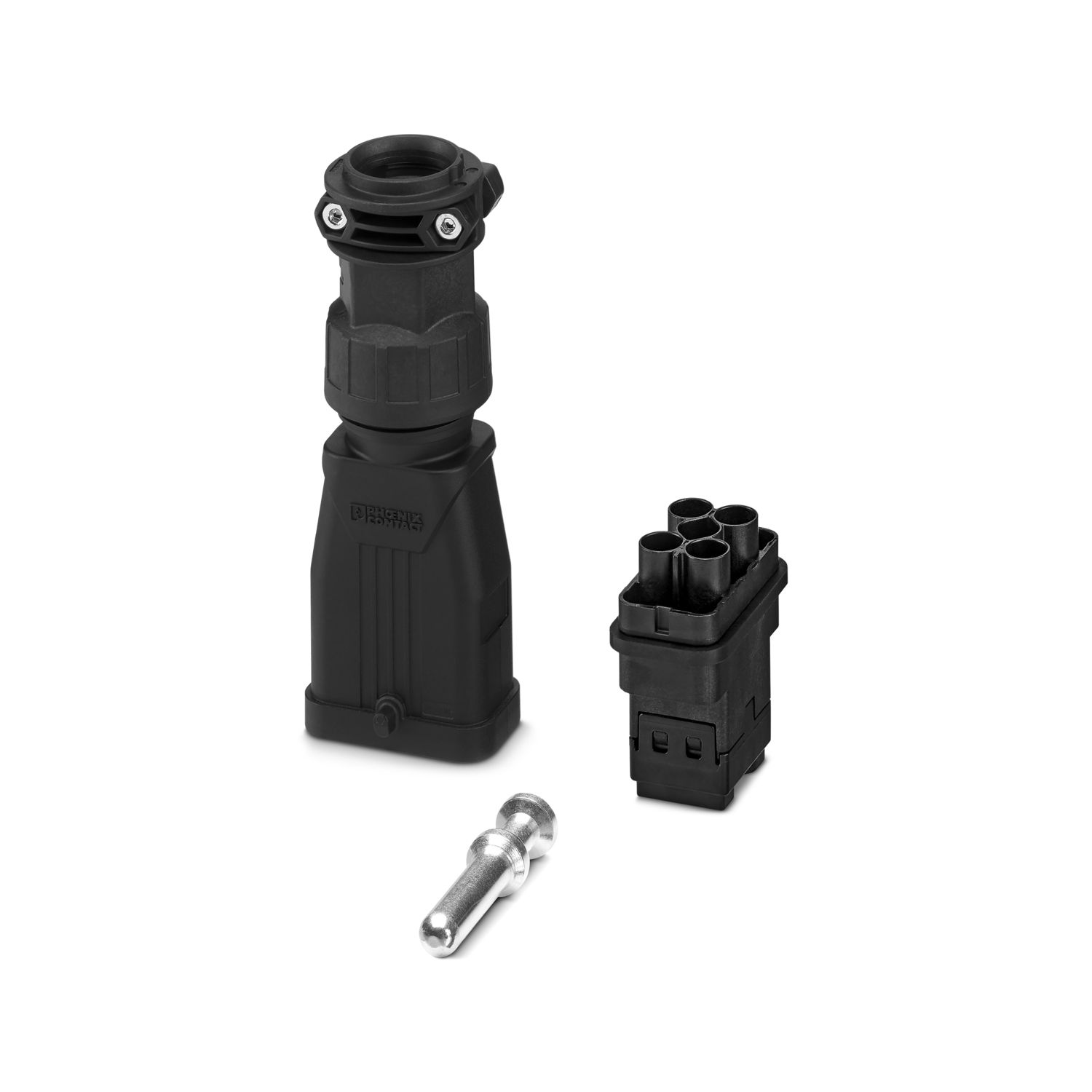

HC-COM-Q4/2CT-HH-SM32-PLBK 5 - Connector set

HC-COM-Q4/2CT-HH-SM32-PLBK 5 - Connector set

1691644

Connector set, number of positions: 4, material: PA, connection method: Crimp connection, connection cross section: AWG 8- 8, cable outlet: straight

Product details

Expand all Collapse all

Technical data

Notes

General	Connectors may be operated only when there is no load/voltage.

Product properties

Product type	Connector set
Series	HC-COM
Type	COM
Number of positions	4
Connection profile	4+2+PE
Contact numbering	1 - 4 (power contacts)
Contact numbering		11 - 12 (control contacts)
No. of cable outlets	1
No. of power contacts	4
No. of control contacts	2
Type of the screw connection	1x M32
Protective cover	no
Contact material type	turned
Cable outlet	straight
Pg screw connection	with
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Electrical properties

Rated voltage (III/3)	400 V (Phase-ground power contacts)
		250 V (control contacts)
		690 V (Phase-phase power contacts)
Rated voltage for power contacts	400/690 V
Rated voltage for power contacts		250
Rated surge voltage	6 kV (Phase-phase power contacts)
Rated surge voltage		4 kV (control contacts)
Rated current	40 A (power contacts)
Rated current		10 A (control contacts)

Connection data

Connection method	Crimp connection
Connection technology	Crimp connection
Connection in acc. with standard	IEC / EN
Conductor cross section	10 mm² ... 10 mm² (power contacts)
Conductor cross section		10 mm² ... 10 mm² (power contacts)
Connection cross section AWG	8 ... 8 (power contacts)
Tightening torque	0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing)
Stripping length of the individual wire	16 mm (10 mm² power circuit)

Dimensions

Drill hole distance, horizontal	32.2 mm
Drill hole distance, vertical	13.4 mm
Installation dimensions
Width of the assembly cutout	22.7 mm
Length of the assembly cutout	26.5 mm
Mechanical characteristics
Contact diameter	4 mm

Material specifications

Flammability rating according to UL 94	V0
Housing material	PA
Contact material	Copper alloy
Contact surface material	Ag
Contact carrier material	PC
Material of contact surface, power contact	Ag
Locking latch material	PA

Cable/line

Stripping length of the individual wire	16 mm (10 mm² power circuit)

Mechanical properties

Mechanical data
Type of the screw connection	1x M32
Locking type	Latch
Insertion/withdrawal cycles	≥ 500

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP66
Enclosure rating (NEMA)	12 (UL 50e)
Ambient temperature (operation)	-40 °C ... 125 °C (including heating up of contacts)

Mounting

Assembly note	Connectors may only be actuated when there is no load/voltage.

Commercial data

Item number	1691644
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	AF7AFX
Product key	AF7AFX
GTIN	4067923253674
Weight per piece (including packing)	118 g
Weight per piece (excluding packing)	118 g
Country of origin	PL

Classifications

ECLASS

ECLASS-13.0	27440115
ECLASS-15.0	27440113

ETIM

ETIM 9.0

EC002635

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329) (CAS: n/a)

Compatible products

Expand all Collapse all

Accessories

UNIFOX RT-CK 4.0 - Contact removal tool 1072064

Your advantages

Shock and vibration-resistant in accordance with DIN EN 61373
