PSI-GSM/UMTS-QB-ANT - Antenna
PSI-GSM/UMTS-QB-ANT
-
Antenna
2313371
Electrical number:
966800119
GSM UMTS antenna, with omnidirectional characteristic, 2 m antenna cable with SMA round connector
Product details
Expand all
Collapse all
Technical data
Product properties
Product type
Antenna
Radiation characteristics
Omnidirectional
Gain
5 dBi (800/900 MHz)
3 dBi (1800/1900 MHz)
1 dBi (2100 MHz)
Polarization
Linear vertical
Electrical properties
Frequency band
2100 MHz
850 MHz
1900 MHz
1800 MHz
900 MHz
Frequency range
800 MHz ... 900 MHz
1.8 GHz ... 1.9 GHz
2.1 GHz
Impedance
50 Ω
Maximum capacity
10.00 W
Voltage standing wave ratio VSWR in a 50 Ω system
< 2.00
Connection data
Connection technology
Connection method
SMA (male)
Dimensions
Height
21 mm
Diameter
76 mm
Material specifications
Material (Cable)
RG174 (Outer cable sheath)
Cable/line
Cable length
2.00 m
Connecting cable
yes
External cable diameter
2.70 mm
Smallest bending radius, fixed installation
15 mm
Environmental and real-life conditions
Ambient conditions
Degree of protection
IP69K (Assembled)
Ambient temperature (operation)
-40 °C ... 85 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C

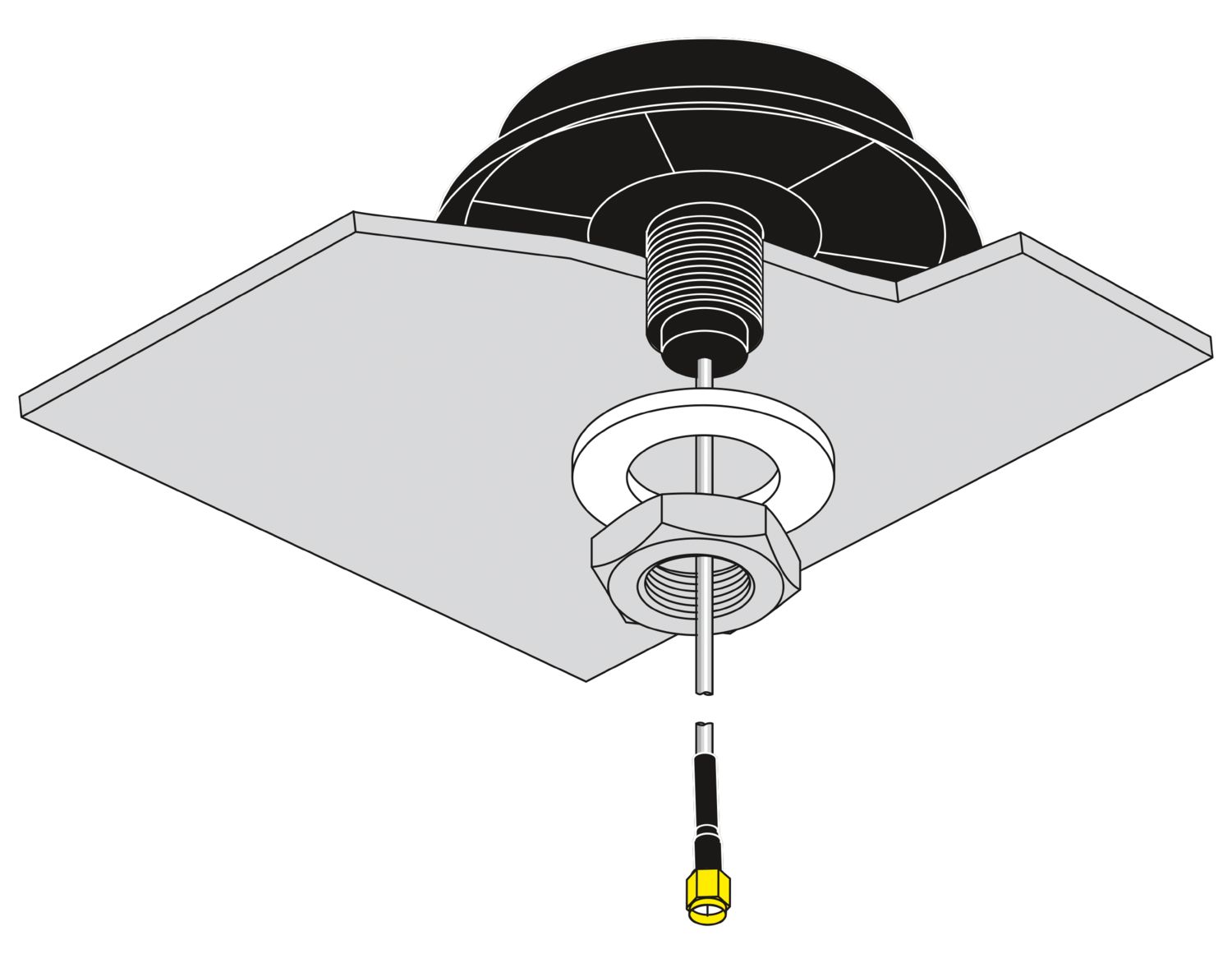

Mounting
Mounting type
Control cabinet
Commercial data
Item number
2313371
Packing unit
1 pc
Minimum order quantity
1 pc
Sales key
DNC4Z1
Product key
DNC4Z1
Catalog page
Page 415 (C-6-2019)
GTIN
4046356411066
Weight per piece (including packing)
96.5 g
Weight per piece (excluding packing)
94.7 g
Customs tariff number
85291000
Country of origin
DE
Classifications
ECLASS
ECLASS-13.0
19070105
ETIM
ETIM 9.0
EC001698
UNSPSC
UNSPSC 21.0
43223100
Environmental product compliance
EU RoHS
Fulfills EU RoHS substance requirements
Yes
Exemption
6(c)
China RoHS
Environment friendly use period (EFUP)
EFUP-E
No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)
Lead
(CAS: 7439-92-1)
Compatible products
Expand all
Collapse all
Accessories
NLC-COM-GSM
-
Communication module
2701344
PSI-CAB-GSM/UMTS-10M
-
Antenna cable
2900981
PSI-CAB-GSM/UMTS- 5M
-
Antenna cable
2900980
