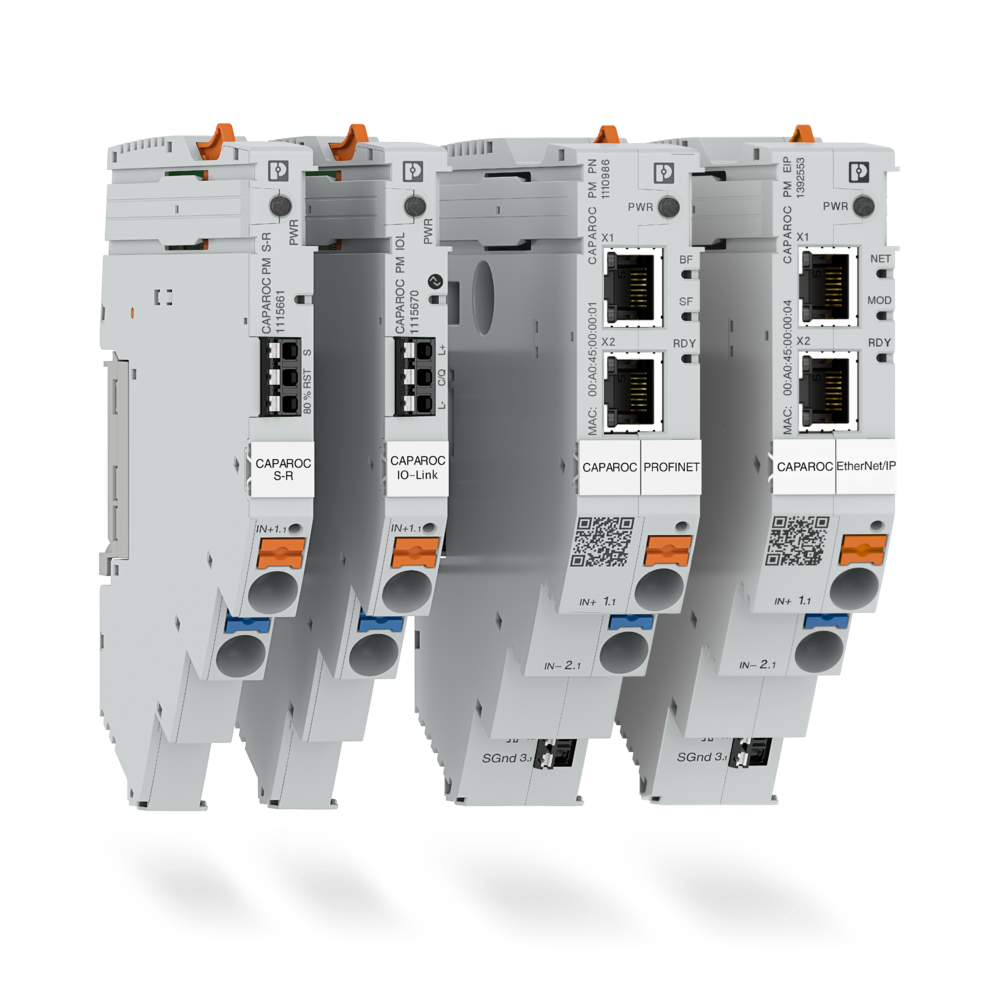

CAPAROC Circuit Breaker System
Quick start guide
Below is a list of tips for navigating our online documentation.
Viewing topics
- In the desktop view, all topics (when no filters are applied) can be accessed from the "Contents" tab.
- In the mobile view, click the "Show left panel" button
to view the content.
Button functions
"Set filters" button — used to filter topics. Click and select all the applicable options.
"Set filters" button — used to filter topics. Click and select all the applicable options.
"Add to favourites" button — used to add a topic to a favourite list.
"Show favourites list" button — used to view your favourite topics, for example, when re-visiting this online documentation. For this feature a cookie will be placed on your device but stays strictly anonymous.
This online documentation is valid for the following CAPAROC products:

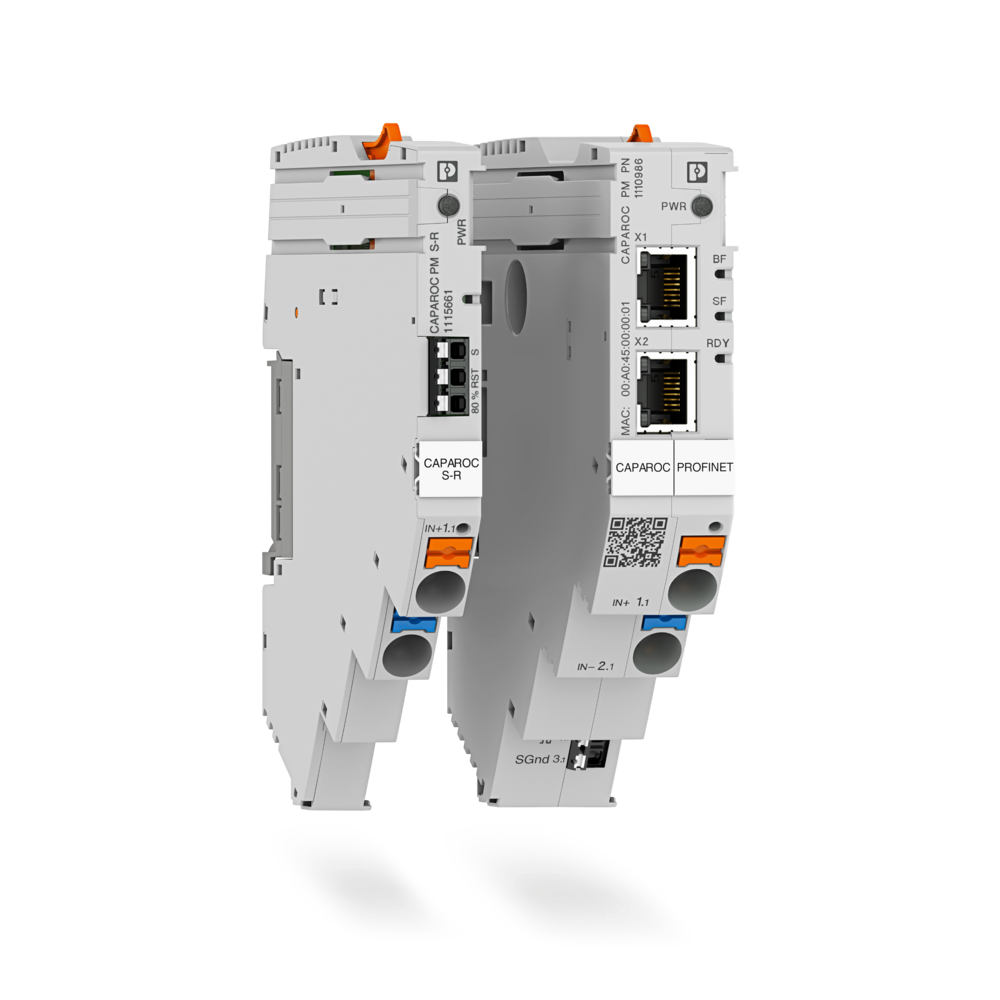

| CAPAROC power modules |
| Interface protocol | Item number |
| Status-Reset | CAPAROC PM S-R 1115661 |
| Status-Reset EX | CAPAROC PM S-R EX 1344363 |
| IO-Link | CAPAROC PM IOL 1115670 |
| Profinet | CAPAROC PM PN 1110986 |
| EtherNet/IP™ | CAPAROC PM EIP 1393553 |
| Modbus TCP | CAPAROC PM MB 1687559 |
| EtherCAT® | CAPAROC PM EC 1687560 |

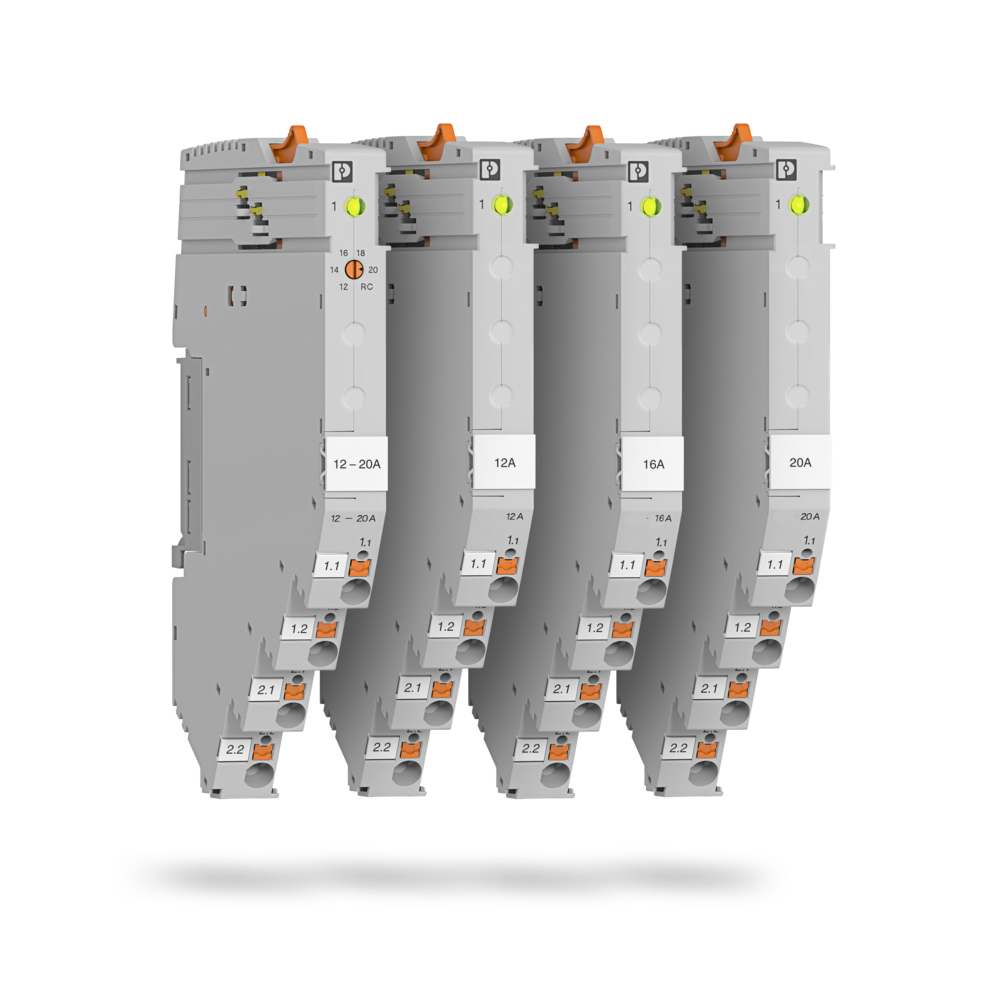

| CAPAROC circuit breaker modules |
| Description | Item number |
| 1-channel, 1 A nominal current | CAPAROC E1 12-24DC/1A 1157288 |
| 1-channel, 2 A nominal current | CAPAROC E1 12-24DC/2A 1157290 |
| 1-channel, 4 A nominal current | CAPAROC E1 12-24DC/4A 1157285 |
| 1-channel, 6 A nominal current | CAPAROC E1 12-24DC/6A 1157286 |
| 1-channel, 8 A nominal current | CAPAROC E1 12-24DC/8A 1157279 |
| 1-channel, 10 A nominal current | CAPAROC E1 12-24DC/10A 1157284 |
| 1-channel, adjustable from 1 A - 4 A | CAPAROC E1 12-24DC/1-4A 1115415 |
| 1-channel, adjustable from 1 A - 10 A | CAPAROC E1 12-24DC/1-10A 1115649 |
| 1-channel, 12A nominal current | CAPAROC E1 12-24DC/12A 1524929 |
| 1-channel, 16A nominal current | CAPAROC E1 12-24DC/16A 1115666 |
| 1-channel, 20A nominal current | CAPAROC E1 12-24DC/20A 1524930 |
| 1-channel, adjustable from 11 A – 20A | CAPAROC E1 12-24DC/12-20A 1115663 |
| 2-channel, adjustable from 1 A - 4 A | CAPAROC E2 12-24DC/1-4A 1115655 |
| 2-channel, adjustable from 2 A - 10 A | CAPAROC E2 12-24DC/2-10A 1110984 |
| 2-channel, adjustable from 1-4 A, EX approval | CAPAROC E2 12-24DC/1-4A EX 1344361 |
| 2-channel, adjustable from 2-10 A, EX approval | CAPAROC E2 12-24DC/2-10A EX 1344364 |
| 4-channel, adjustable from 1 A - 4 A | CAPAROC E4 12-24DC/1-4A 1115657 |
| 4-channel, adjustable from 1 A - 10 A | CAPAROC E4 12-24DC/1-10A 1115658 |

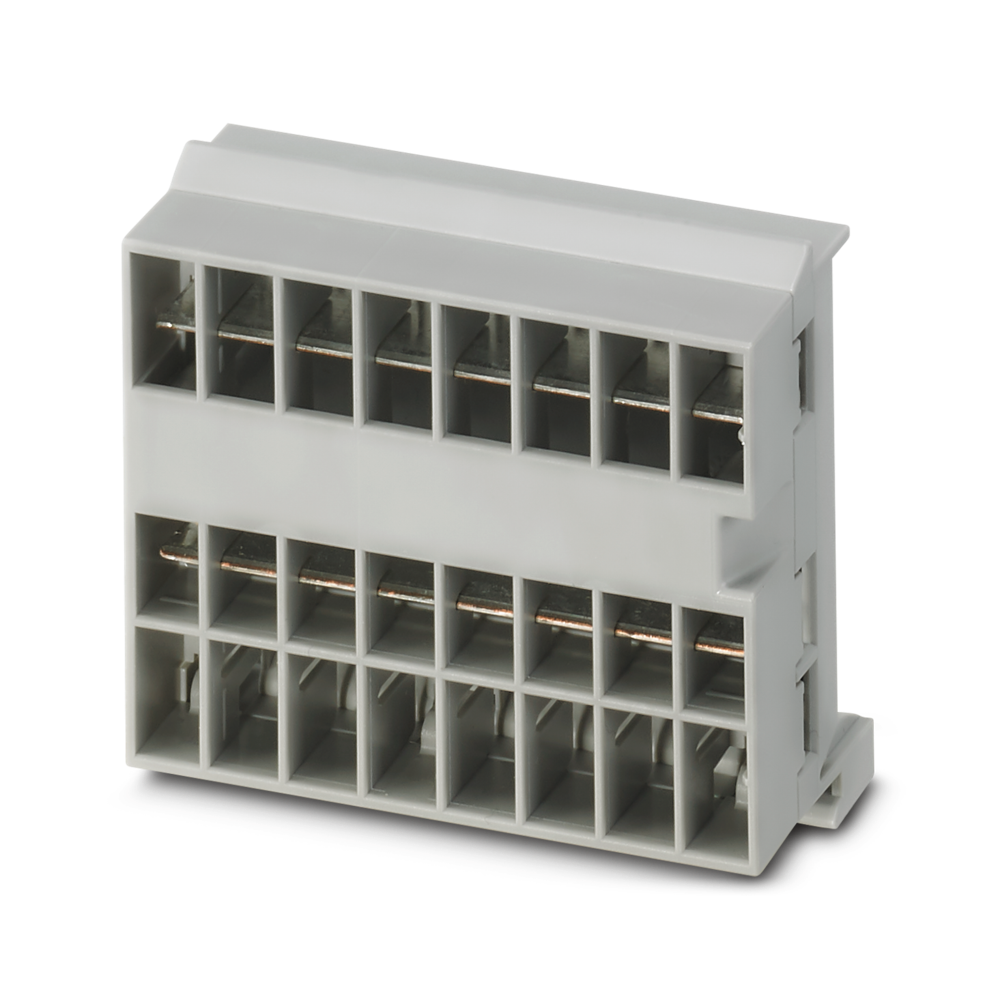

| CAPAROC current rails |
| Description | Item number |
| Basic rail with an overall width of 8 HP (49.2 mm) | CAPAROC CR 8 1115672 |
| Basic rail with an overall width of 20 HP (123 mm) | CAPAROC CR 20 1110989 |
| Extending rail with an overall width of 4 HP (24.6 mm) | CAPAROC CR EXT4 1110991 |
| Extending rail with an overall width of 8 HP (49.2 mm) | CAPAROC CR EXT8 1110990 |
| Extending rail with an overall width of 20 HP (123 mm) | CAPAROC CR EXT20 1115674 |
Additional product details can be found on our website.
To access this information, in the table above, click on the cell with the product code.
EtherCAT® is a registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany.
