UM108-SEFE/L-A60
-
Lateral element
2959722
Side element, with foot, tall version, left-hand, for 60 mm wide U-shaped cover.
Product details
| Product type | Panel mounting base side part |
| Housing type | Press-drawn section housings |
| Housing series | UM |
| Product family | UM108 |
| Ventilation openings present | no |

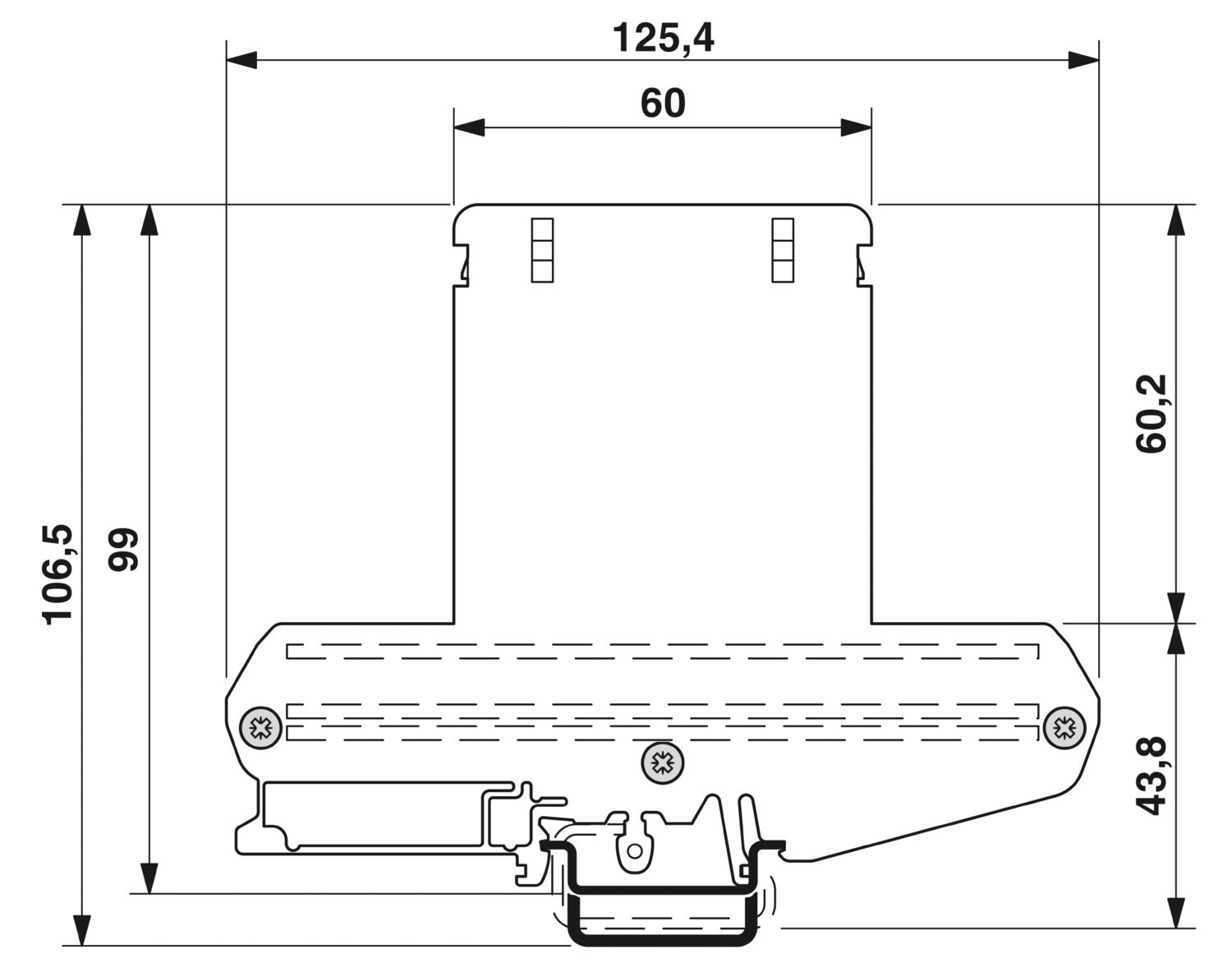

| Dimensional drawing |
|
| Depth | 125 mm |
| Color (Housing) | green (RAL 6021) |
| Material | PA |
| Flammability rating according to UL 94 | V0 |
| Surface characteristics | untreated |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
